Polyurethane Floating Fender Has A Long Service Life of 15 Years

Short Description:

Characteristics of polyurea elastomer:
1. Polyurea elastomer combines the strength of plastic and the elasticity of rubber in a new synthetic material.
2. It has superior wear resistance, surpassing natural glue by 3-5 times.
3. Polyurea elastomer boasts excellent oil resistance, around 4 times that of butadiene rubber.
4. It has extraordinary mechanical strength, including tear strength and load bearing capacity, far exceeding ordinary rubber.
5. This material displays exceptional resistance to acid, alkali, low temperatures, and solvents.
6. Additionally, polyurea elastomer has a strong bonding capacity with metal frame plates.
7. The wide hardness range of A10 to A100 allows for customizable elasticity as needed.


Product Detail

Product Tags

Foam filled fender component

Polyurethane elastomer, EVA foaming, steel pipe and flange four parts.

Foam filled fender best features

1. With high floating performance, not affected by the tide.
2. Bright colors, according to customer requirements to provide a variety of colors.
3. Compared with the inflatable fender, the use process does not need to add gas, not afraid of scratching, not afraid of puncture, not afraid of friction, sea water resistance, acid and alkali resistance; The service life is as long as 25--30 years, with safety and maintenance free sex.
4. Although it is a solid core, but the weight is very light, convenient installation and mobile flexible.
5. When the compression deformation is 60%, the reaction force is obvious from small to large, and the energy absorption is very high.

Common dimensions and properties of foam-filled fenders

SIZE

Compression deformation 60%

 Diameter(mm)

Length  (mm)

Reactionforce-kn

Energyabsorb kn-m

300

500

38

1.8

400

800

56

2.6

500

1000

71

3.8

600

1000

95

5

700

1500

150

24.5

1000

1500

205

49

1000

2000

274

64

1200

2000

337

93

1200

2400

405

129

1350

2500

514

172

1500

3000

624

216

1700

3000

807

260

2000

3500

990

456

2000

4000

1163

652

2500

4000

1472

1044

2500

5000

1609

1228

3000

5000

2050

1412

3000

6000

2460

1695

3300

6500

2665

1836

Schematic diagram of foam-filled fender structure

product-description1 product-description2

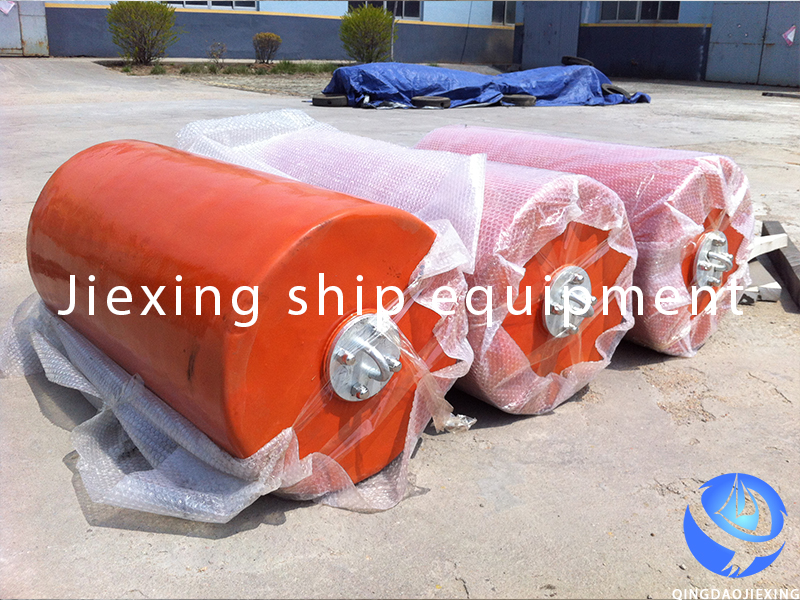

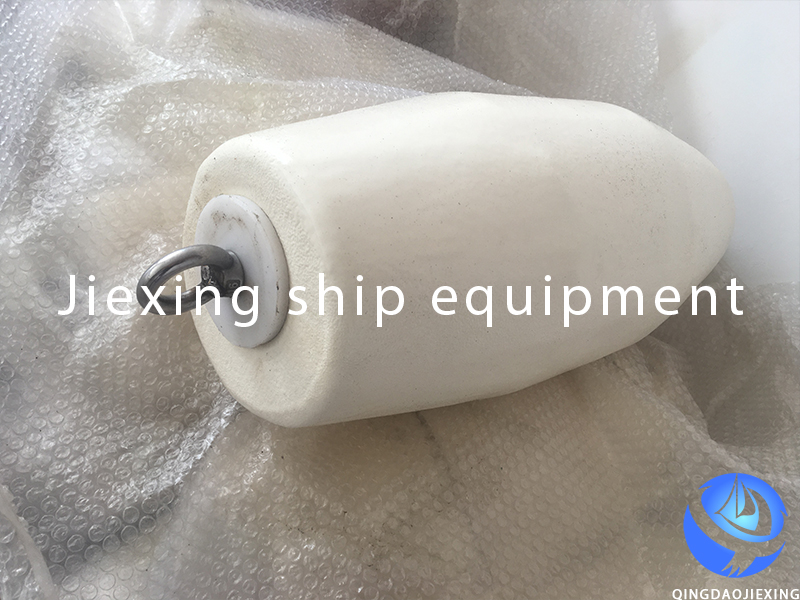

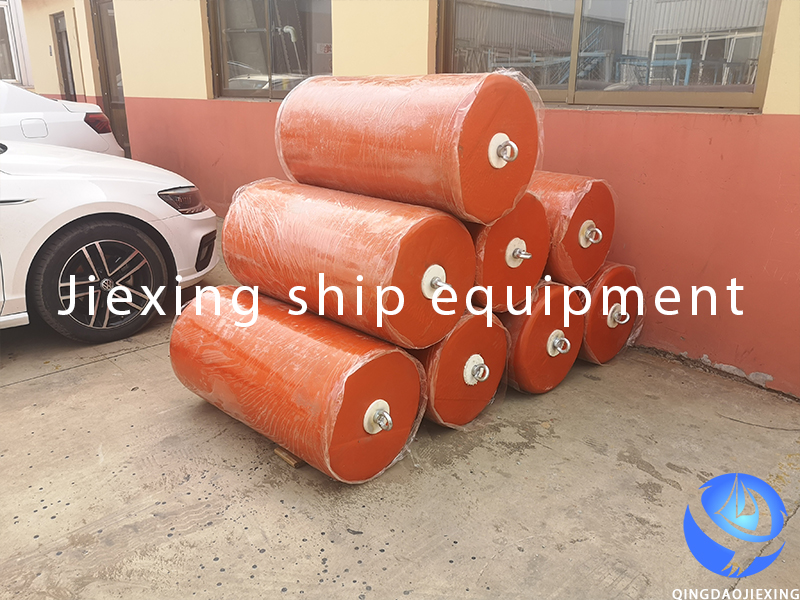

Foam filled fender case display

Polyurethane-floating-fender-(1)
Polyurethane-floating-fender-(2)
Polyurethane-floating-fender-(3)
Polyurethane-floating-fender-(4)
