Large Yokohama Marine Fender Extra Long Warranty

Short Description:


Product Detail

Product Tags

Common dimensions and properties of yokohama fender

SIZE

Initial pressure is 80 kPa

Compression deformation 60%

Diameter(mm)

Length (mm)

Reactionforce-kn

Energyabsorb kn-m

500

1000

87

9

600

1000

100

10

700

1500

182

28

1000

1500

241

40

1000

2000

340

54

1200

2000

392

69

1350

2500

563

100

1500

3000

763

174

1700

3000

842

192

2000

3500

1152

334

2000

4000

1591

386

2500

4000

1817

700

2500

5500

2655

882

3000

5000

2715

1080

3000

6000

3107

1311

3300

4500

2478

1642

3300

6000

3654

2340

3300

6500

3963

2534

Pneumatic rubber fender, yokohama pneumatic fender features

1. Large energy absorption, small reaction force, so as to ensure that neither damage the hull nor damage the shore wall.
2. Simple installation, portable, in any ship, any sea area is not affected by the tide and the size of the ship.
3. Good resilience, the product will not be deformed due to the force after the force is exerted. After the fender is squeezed, more than 95% of the product will be released immediately after the force.
4. Good economic performance, pneumatic fender compared with the same period, Beierte fender economic performance is good, cost-effective, reliable quality. Qingdao Jiexing Fender has undergone inspection from raw material purchasing, product ordering, product production and product inspection to ensure its quality.

Inflatable rubber fender is a new type of winding fender, abrasion resistance, scratch resistance, resistance to ageing, stung, etc, the appearance of the most prominent feature is the surface of the pneumatic rubber fender ontology by a tire chain net type sheathed packages, protect the fender of ontology is stung by sharp objects, scratches, drop and so on, which is a fender ontology use fixed number of year.

Yokohama fenders structure diagram

product-description1

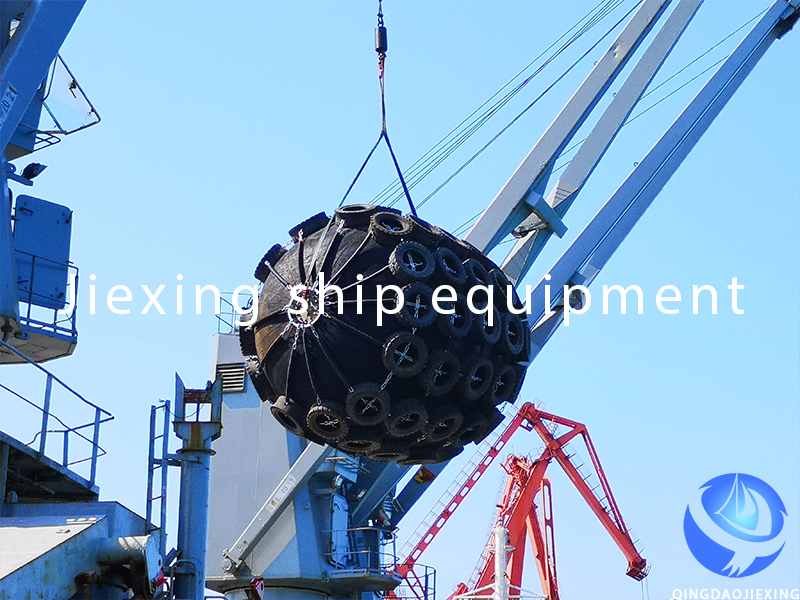

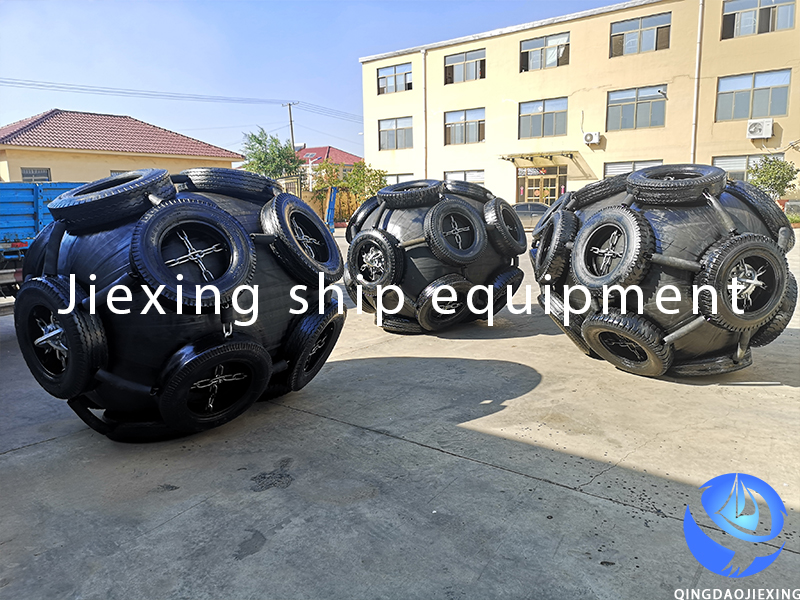

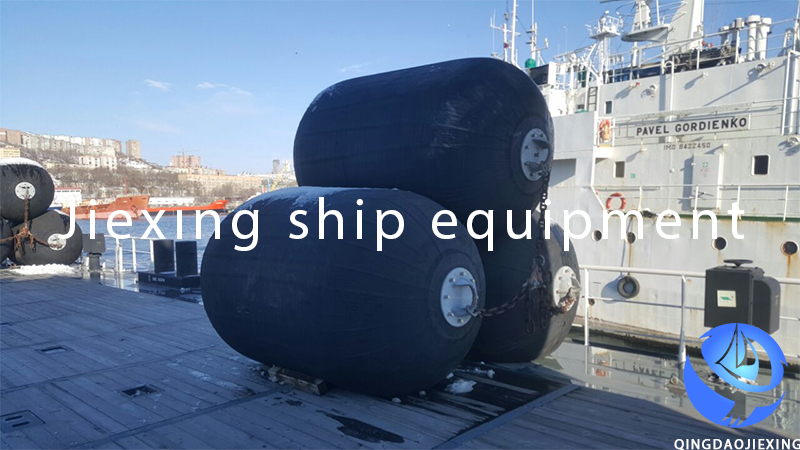

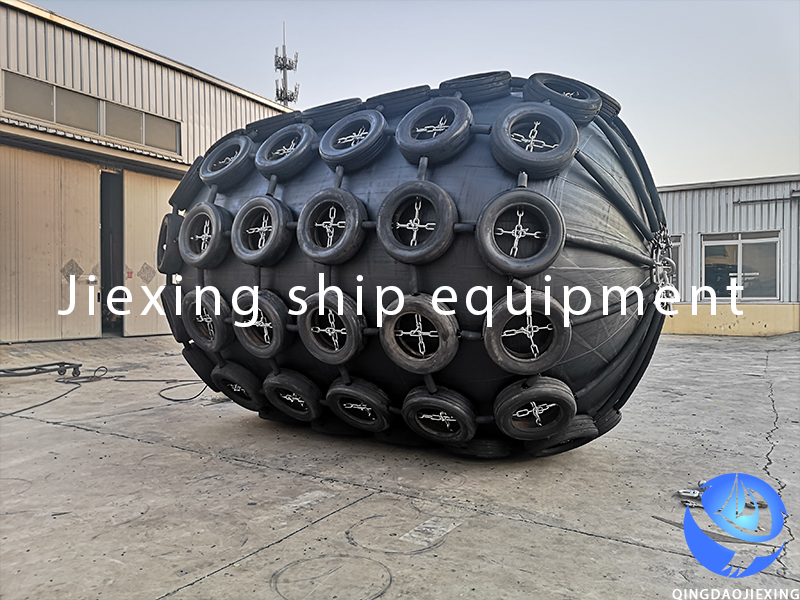

Yokohama fender case display

pneumatic-rubber-fender-(1)
Marine-rubber-fender-(4)
pneumatic-rubber-fender-(3)
Pneumatic-rubber-fender-(4)
