Long Service Life of Wear-Resistant Ship Fender
Common dimensions and properties of Marine fender
|
SIZE |
Initial pressure is 80 kPa Compression deformation 60% |
||
|
Diameter（mm） |
Length (mm) |
Reactionforce-kn |
Energyabsorb kn-m |
|
500 |
1000 |
87 |
9 |
|
600 |
1000 |
100 |
10 |
|
700 |
1500 |
182 |
28 |
|
1000 |
1500 |
241 |
40 |
|
1000 |
2000 |
340 |
54 |
|
1200 |
2000 |
392 |
69 |
|
1350 |
2500 |
563 |
100 |
|
1500 |
3000 |
763 |
174 |
|
1700 |
3000 |
842 |
192 |
|
2000 |
3500 |
1152 |
334 |
|
2000 |
4000 |
1591 |
386 |
|
2500 |
4000 |
1817 |
700 |
|
2500 |
5500 |
2655 |
882 |
|
3000 |
5000 |
2715 |
1080 |
|
3000 |
6000 |
3107 |
1311 |
|
3300 |
4500 |
2478 |
1642 |
|
3300 |
6000 |
3654 |
2340 |
|
3300 |
6500 |
3963 |
2534 |
The company has long been committed to pneumatic fender to yokohama, pneumatic fender, pneumatic rubber fender, inflatable rubber fender, Marine pneumatic fender, foam filling fender, product research and development, production and sales of ship launching airbag, using natural rubber and styrene butadiene rubber, polybutadience rubber, such as synthetic rubber, rubber hard, more abrasion resistance and toughness, product use high quality materials and special explosion-proof technology, sightseeing along the outside, good wear resistance, aging resistance, air tightness, high intensity, long service life, high quality, and through the ISO17357 and ISO9001: 2008 international quality management system certification and CCS, ABS, BV, DNV, GL, LR and other product quality certification, and for the national large construction enterprises and wharf protection to provide products and services.
Pneumatic rubber fender is also called yokohama fender, inflatable rubber fender, Marine fender, yokohama pneumatic fender, pneumatic rubber fender
Structure diagram of inflatable fender
Inflatable rubber fender is a new type of winding fender, abrasion resistance, scratch resistance, resistance to ageing, stung, etc, the appearance of the most prominent feature is the surface of the pneumatic rubber fender ontology by a tire chain net type sheathed packages, protect the fender of ontology is stung by sharp objects, scratches, drop and so on, which is a fender ontology use fixed number of year.
According to the user for fender different, pneumatic rubber fender is also called Yokohama fender, inflatable rubber fender and Marine fender.
What matters should be paid attention to in the selection of pneumatic rubber fender
1. First, dock at the wharf according to the tonnage, type and operating environment of the ship.
2. The selection of pneumatic rubber fender should also take into account the tonnage of the ship's derrick and the maximum arm length; Because of the pneumatic rubber fender.
The weight and diameter shall not be higher than the tonnage of the derrick and the maximum arm length of the ship.
3. Pneumatic rubber fender is divided into tire chain mesh type and portable type. It depends on which Marine fender is suitable for the ship's operating environment.
4. According to the diameter of pneumatic rubber fender, the number of cord layers is different.
5. If you are not sure about the above precautions, you can leave a message to us and inform us of the basic data and requirements of the ship. The technical department will recommend the fender suitable for you according to your requirements.

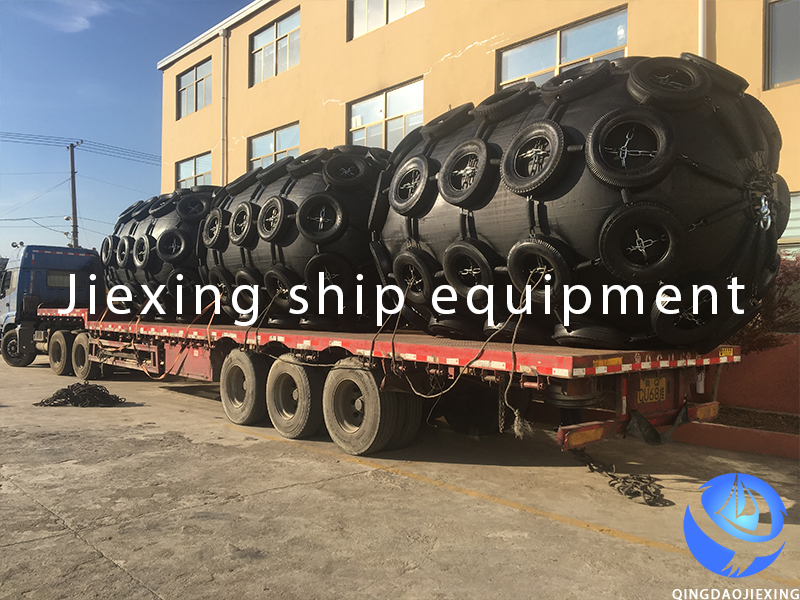

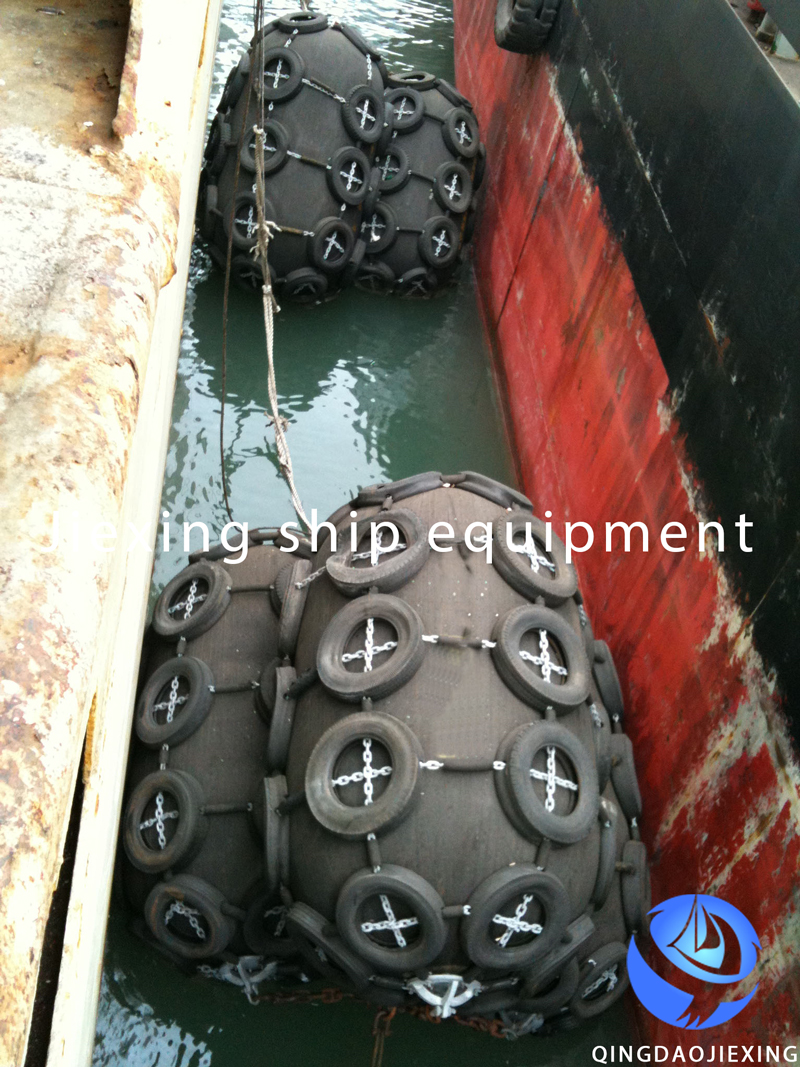

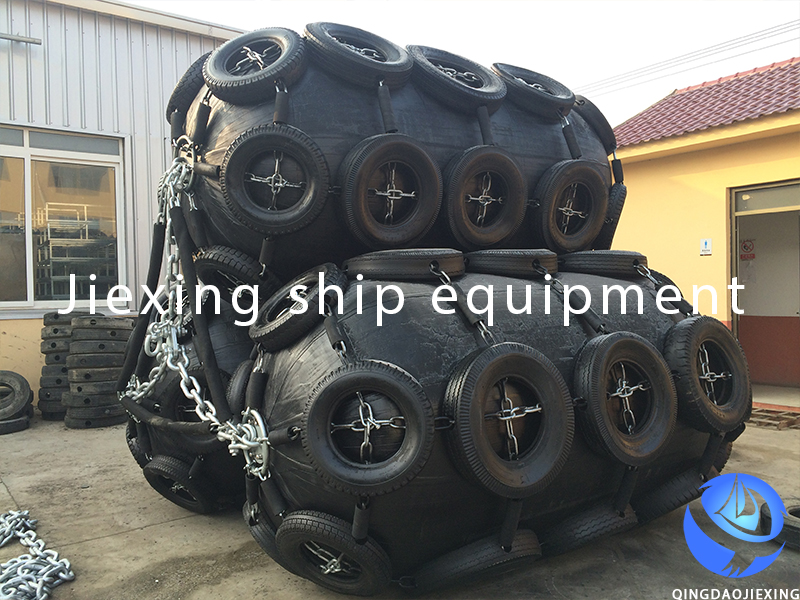

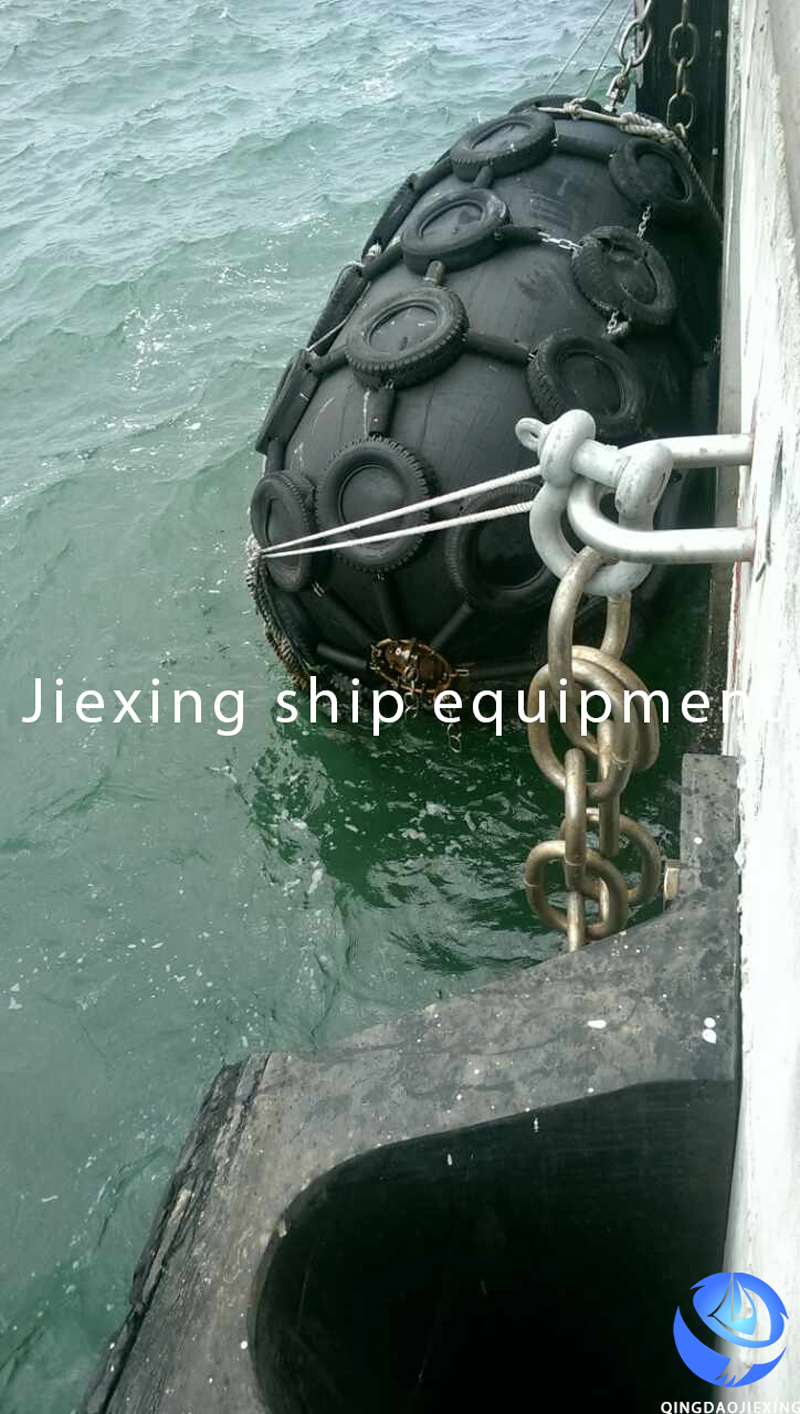

Case demonstration of pneumatic fender
