Pneumatic Fenders Support Custom Size

Short Description:

The company has long been committed to pneumatic fender to yokohama, pneumatic fender, pneumatic rubber fender, inflatable rubber fender, Marine pneumatic fender, foam filling fender, product research and development, production and sales of ship launching airbag, using natural rubber and styrene butadiene rubber, polybutadience rubber, such as synthetic rubber, rubber hard, more abrasion resistance and toughness, product use high quality materials and special explosion-proof technology, sightseeing along the outside, good wear resistance, aging resistance, air tightness, high intensity, long service life, high quality, and through the ISO17357 and ISO9001: 2008 international quality management system certification and CCS, ABS, BV, DNV, GL, LR and other product quality certification, and for the national large construction enterprises and wharf protection to provide products and services.

Pneumatic rubber fender is also called yokohama fender, inflatable rubber fender, Marine fender, yokohama pneumatic fender, pneumatic rubber fender.

Send email to us

Product Detail

Product Tags

Yokohama Fender common size, performance

SIZE		Initial pressure is 80 kPa Compression deformation 60%
Diameter（mm）	Length (mm)	Reactionforce-kn	Energyabsorb kn-m
500	1000	87	9
600	1000	100	10
700	1500	182	28
1000	1500	241	40
1000	2000	340	54
1200	2000	392	69
1350	2500	563	100
1500	3000	763	174
1700	3000	842	192
2000	3500	1152	334
2000	4000	1591	386
2500	4000	1817	700
2500	5500	2655	882
3000	5000	2715	1080
3000	6000	3107	1311
3300	4500	2478	1642
3300	6000	3654	2340
3300	6500	3963	2534

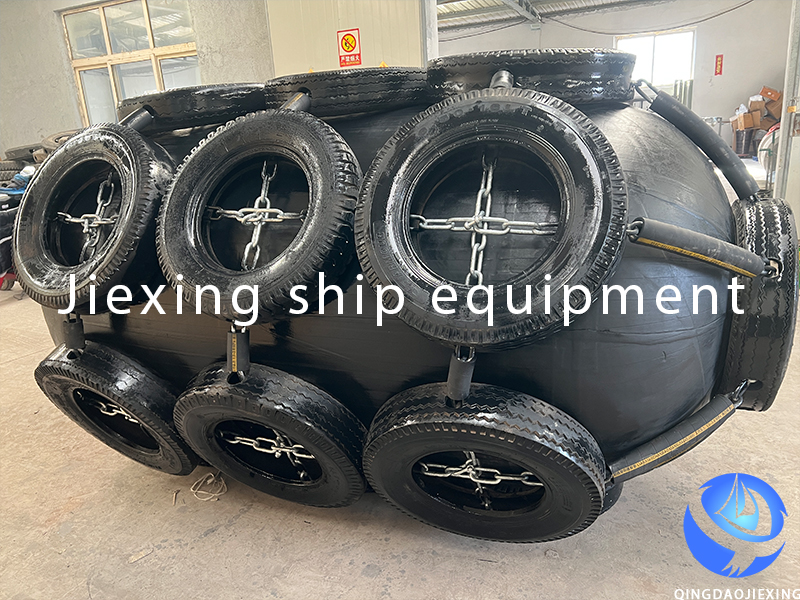

Marine pneumatic fender tyre chain nets are selected as follows

Tire chain network is divided into: ordinary car tires, truck tires, airplane tires; Aircraft tires have the most wear resistance (but the cost is relatively higher), the use of chains, shackles must be hot-dip galvanized; The protective pipe should be covered outside the chain, which is to protect the chain from wearing the fender body and the hull from being damaged.
