Marine Airbags High Strength Safe and Reliable

Short Description:


Product Detail

Product Tags

Main business of the company

Company's long-term commitment to Boat Lift Airbags, Marine salvage airbags, yokohama pneumatic fender, Marine pneumatic fender, inflatable rubber fender, pneumatic rubber fender, yokohama fender, research and development, production and sales of the pneumatic fender in yokohama, using natural rubber and styrene butadiene rubber, polybutadience rubber, such as synthetic rubber, rubber hard, more abrasion resistance and toughness, product use high quality materials and special explosion-proof technology, sightseeing along the outside, good wear resistance, aging resistance, air tightness, high intensity, long service life, high quality, and through the ISO17357 and ISO9001: 2008 international quality management system certification and CCS, ABS, BV, DNV, GL, LR and other product quality certification, and for the national large construction enterprises and wharf protection to provide products and services.

Pneumatic rubber fender is also called Yokohaine fender, inflatable rubber fender, Marine pneumatic fender and Marine fender.

Marine airbag performance

Diameter

Layer

Working pressure

Working height

Guaranteed bearing capacity per unit length(T/M)

D=1.0m

6-8

0.18MPa-0.22MPa

0.5m-0.8m

≥13.7

D=1.2m

6-8

0.17MPa-0.2MPa

0.6m-1.0m

≥16.34

D=1.5m

6-8

0.16Mpa-0.18MPa

0.7m-1.2m

≥18

D=1.8m

6-10

0.15MPa-0.18MPa

0.7m-1.5m

≥20

D=2.0m

8-12

0.17MPa-0.2MPa

0.9m-1.7m

≥21.6

D=2.5m

8-12

0.16MPa-0.19MPa

1.0m-2.0m

≥23

Dimensions and specifications of Marine airbags

Size

Diameter

1.0m,1.2m,1.5m,1.8m,2.0m,2.5m,2.8m,3.0m

Effective Length

8m,  10m,12m,15m,16m,  18m,20m,22m,24m,Etc.

Layer

 4layer,5layer,6layer,8layer,10layer,12layer

Remark:

According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different.

If there are special requirements, can be customized.

Schematic diagram of Marine airbag structure

product-description1

Marine airbag fittings

product-description2

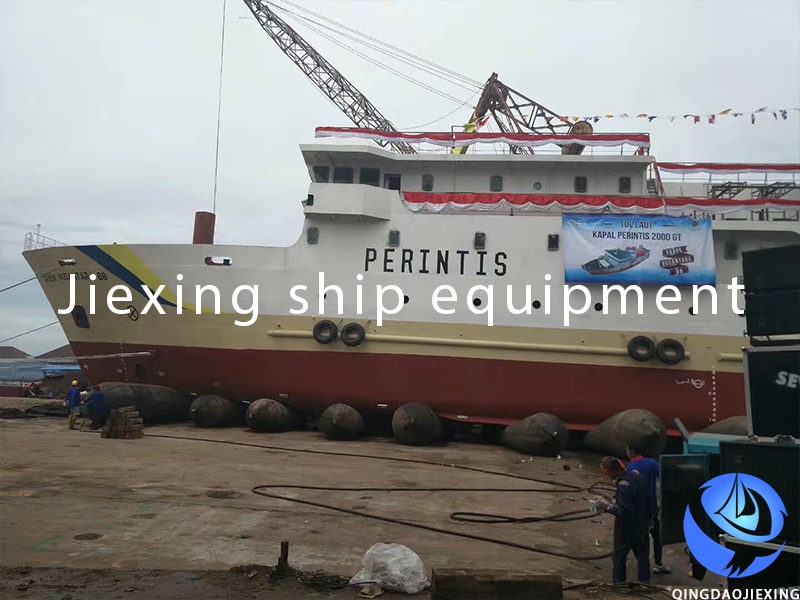

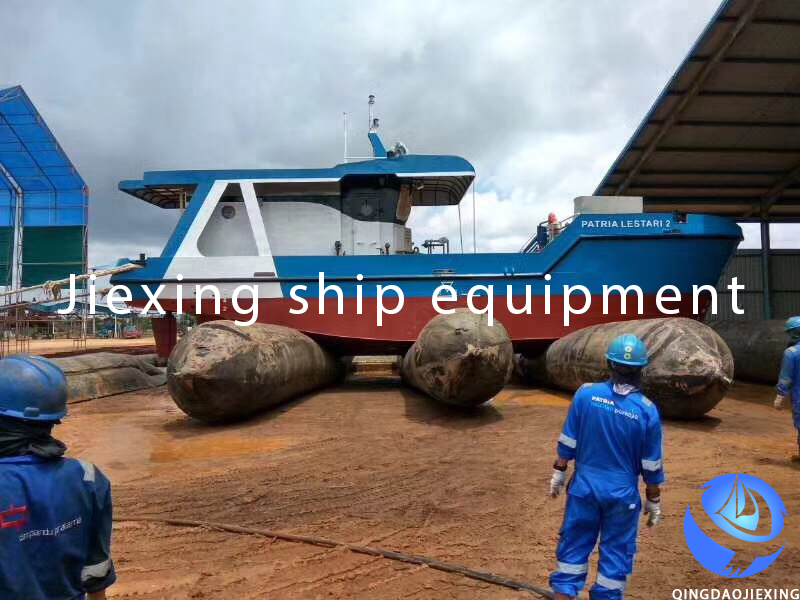

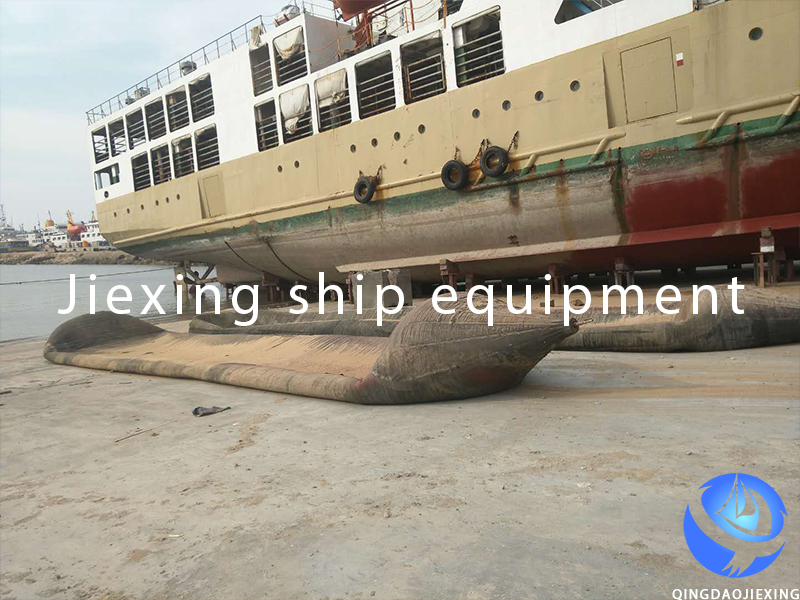

Marine airbag case display

Marine-airbag--(1)
Marine-airbag--(2)
Marine-airbag--(3)
