Wear-Resistant and Explosion-Proof Marine Airbag

Short Description:

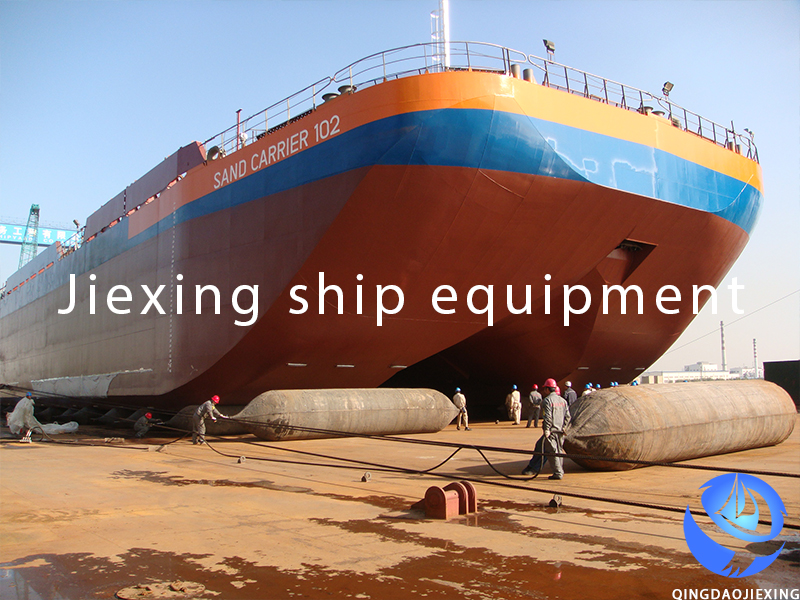

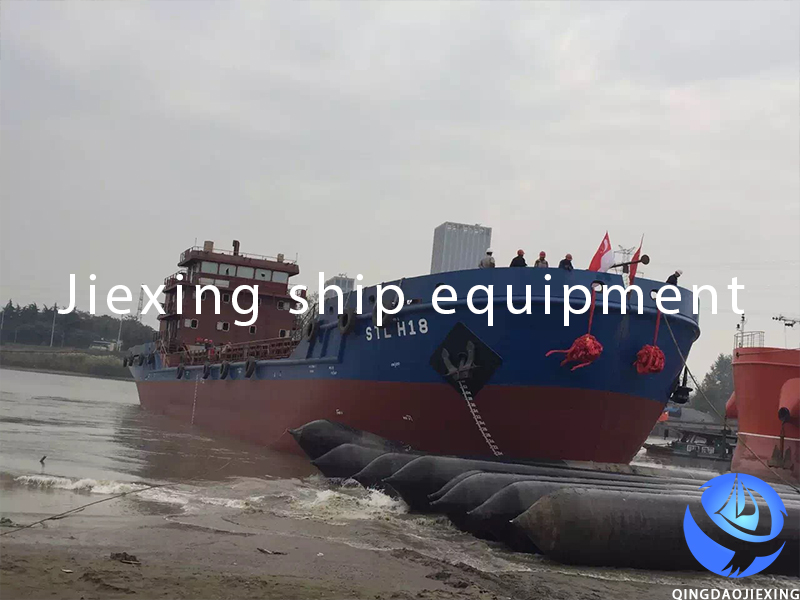

Marine air bag, ship airbag, launching airbag advantages:

1. The construction of the Save a lot of money Using ship airbags on the way, the water launching is a promising new technology, changing the repaired the ship can only adopt slipway, floating dock, the dock water way, thereby saving the chute, dock, the dock into the constructed a lot of money, and thus reduce the upfront costs of the construction yard.

2. Greatly improve the ability of shipyard built Because the traditional way of fluctuation restricted the shipyard’s production capacity, use of Marine airbags flexible fluctuation radically changed only use slipway, dock in the work of the traditional way of the ground can be used in the work of then use airbag launching way, so that it can greatly improve the repaired the ability of shipyard.

Send email to us

Product Detail

Product Tags

Main business of the company

Company's long-term commitment to Boat Lift Airbags, Marine salvage airbags, yokohama pneumatic fender, Marine pneumatic fender, inflatable rubber fender, pneumatic rubber fender, yokohama fender, research and development, production and sales of the pneumatic fender in yokohama, using natural rubber and styrene butadiene rubber, polybutadience rubber, such as synthetic rubber, rubber hard, more abrasion resistance and toughness, product use high quality materials and special explosion-proof technology, sightseeing along the outside, good wear resistance, aging resistance, air tightness, high intensity, long service life, high quality, and through the ISO17357 and ISO9001: 2008 international quality management system certification and CCS, ABS, BV, DNV, GL, LR and other product quality certification, and for the national large construction enterprises and wharf protection to provide products and services.

Marine airbags performance

Diameter	Layer	Working pressure	Working height	Guaranteed bearing capacity per unit length(T/M）
D=1.0m	6-8	0.18MPa-0.22MPa	0.5m-0.8m	≥13.7
D=1.2m	6-8	0.17MPa-0.2MPa	0.6m-1.0m	≥16.34
D=1.5m	6-8	0.16Mpa-0.18MPa	0.7m-1.2m	≥18
D=1.8m	6-10	0.15MPa-0.18MPa	0.7m-1.5m	≥20
D=2.0m	8-12	0.17MPa-0.2MPa	0.9m-1.7m	≥21.6
D=2.5m	8-12	0.16MPa-0.19MPa	1.0m-2.0m	≥23

Dimensions and specifications of Marine airbags

Size	Diameter	1.0m，1.2m，1.5m，1.8m，2.0m，2.5m，2.8m，3.0m
	Effective Length	8m, 10m，12m，15m，16m, 18m，20m，22m，24m,Etc.
Layer	4layer，5layer，6layer，8layer，10layer，12layer
Remark:	According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different. If there are special requirements, can be customized.
