New Integral Winding Technology for Ship Airbag

Short Description:

Ship Airbag application field:

1. The ship building industry and the ship repair industry are mainly to launch the ship safely in the ship building industry, and to shore the ship safely for repair in the ship repair industry.

2. It is used in the construction industry to carry super large building structures. Such as the weight of more than 10,000 tons of piers, wharf caisson and other large reinforced concrete structures on the slope of displacement, salvage sunken ships, stranded rescue and so on.

Compared with the traditional skateboard and slide craft, it has the characteristics of labor-saving, time-saving, labor-saving, less investment, flexible mobility, safety and reliability. It is suitable for all types of ships and construction.

Ship launching air bag is divided into: Low pressure Airbag, medium pressure Airbag, high pressure Aairbag.

Send email to us

Product Detail

Product Tags

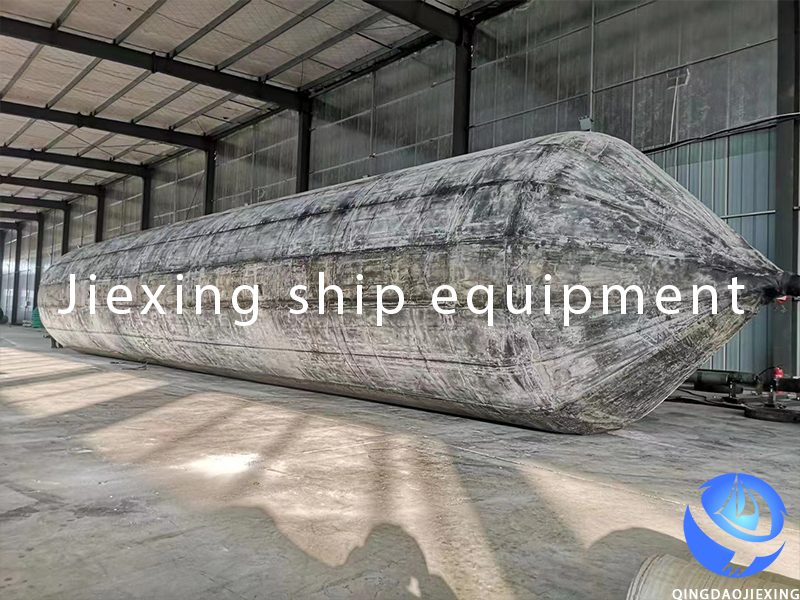

Marine rubber airbag features

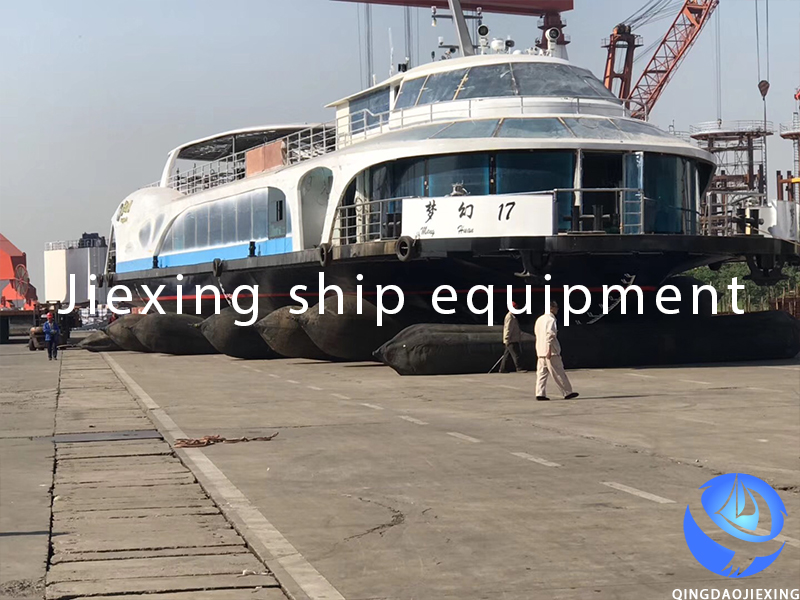

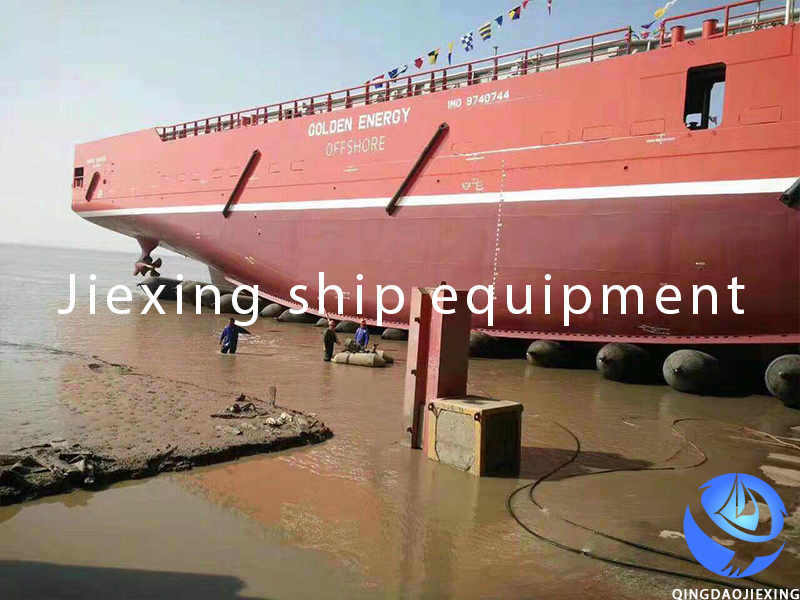

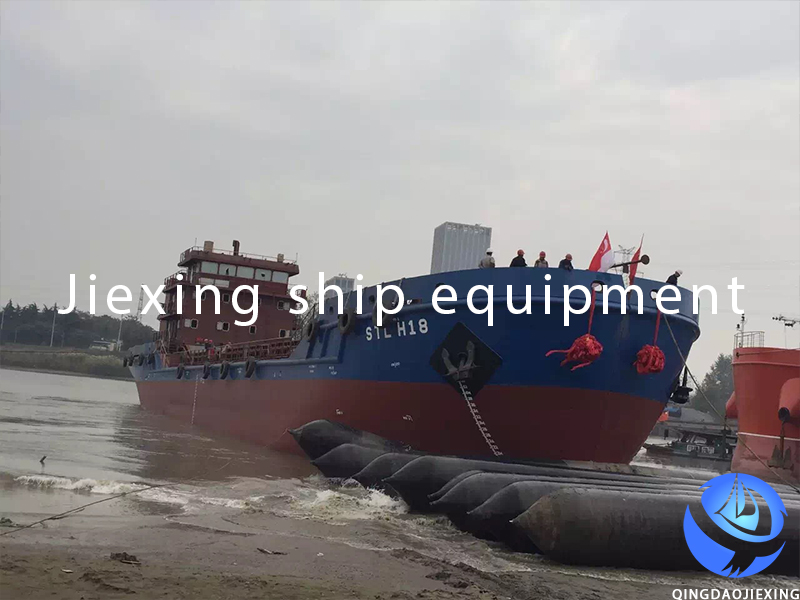

Using Marine airbag launching is a have independent intellectual property rights of innovative technology in China, is a very promising new process, it overcomes the small and medium-sized shipyard ship ever repaired the ability to slide, slide the restriction of traditional craft, because has the characteristics of less investment, quick effect, safe and reliable, get the welcome of the shipbuilding industry. Ship hoisting gasbag and scroll airbags as the main tool that will ship retainer on the balloon, from shipbuilding and ship repairing field into waters or migrate ashore from the water, using the Marine rubber airbag low inflation pressure, large bearing area and the characteristic of the still easy rolling after large deformation, use hoisting gasbag first ship lift from the block, on the scroll air bags, and then through the rolling traction and airbag, make the ship slowly slide into the water. Based on its innovative technology, Qingdao beierte Marine airbag designs and produces a new type of integral winding high strength Marine launching airbag, thus providing the most effective guarantee for the large ship's airbags launching technology.
Ship launching airbags is divided into: low pressure airbag, medium pressure airbag, high pressure airbag

Marine airbags performance

Diameter	Layer	Working pressure	Working height	Guaranteed bearing capacity per unit length(T/M）
D=1.0m	6-8	0.18MPa-0.22MPa	0.5m-0.8m	≥13.7
D=1.2m	6-8	0.17MPa-0.2MPa	0.6m-1.0m	≥16.34
D=1.5m	6-8	0.16Mpa-0.18MPa	0.7m-1.2m	≥18
D=1.8m	6-10	0.15MPa-0.18MPa	0.7m-1.5m	≥20
D=2.0m	8-12	0.17MPa-0.2MPa	0.9m-1.7m	≥21.6
D=2.5m	8-12	0.16MPa-0.19MPa	1.0m-2.0m	≥23

Dimensions and specifications of Marine airbags

Size	Diameter	1.0m，1.2m，1.5m，1.8m，2.0m，2.5m，2.8m，3.0m
	Effective Length	8m, 10m，12m，15m，16m, 18m，20m，22m，24m,Etc.
Layer	4layer，5layer，6layer，8layer，10layer，12layer
Remark:	According to different launching requirements, different ship types and different ship weights, the slope ratio of berth is different, and the size of Marine airbag is different. If there are special requirements, can be customized.
